WOXEN W6-605~630I-E1 Mono-Facial Solar Panel

Solar Panel Models

Specification	605W	610W	615W	620W	625W	630W
Model	RS6-605I-E1	RS6-610I-E1	RS6-615I-E1	RS6-620I-E1	RS6-625I-E1	RS6-630I-E1
Maximum Power (Pmax)	605W	610W	615W	620W	625W	630W
Power Tolerance	0~+5W	0~+5W	0~+5W	0~+5W	0~+5W	0~+5W
Module Efficiency	23.42%	23.61%	23.81%	24.00%	24.19%	24.39%
Maximum Power Current (Imp)	13.52A	13.60A	13.68A	13.76A	13.84A	13.92A
Maximum Power Voltage (Vmp)	44.78V	44.88V	44.98V	45.08V	45.18V	45.28V
Short Circuit Current (Isc)	14.28A	14.36A	14.44A	14.52A	14.60A	14.68A
Open Circuit Voltage (Voc)	54.09V	54.19V	54.29V	54.39V	54.49V	54.59V

Electrical Characteristics - NOCT

Specification	605W	610W	615W	620W	625W	630W
Maximum Power (Pmax)	456W	459W	463W	467W	471W	474W
Maximum Power Current (Imp)	10.79A	10.85A	10.91A	10.98A	11.04A	11.11A
Maximum Power Voltage (Vmp)	42.29V	42.38V	42.48V	42.54V	42.67V	42.76V
Short Circuit Current (Isc)	11.55A	11.61A	11.68A	11.74A	11.81A	11.87A
Open Circuit Voltage (Voc)	51.08V	51.18V	51.27V	51.36V	51.46V	51.55V

Mechanical Characteristics

Cell Type	Mono BC-type, 144(6×24) Half-cut cells
Glass	3.2mm, High Transmission, Low Iron, Tempered Glass
Frame	Anodized Aluminum Alloy
Junction Box	IP68 Rated
Dimensions	2278 × 1134 × 30 mm
Output Cable	4mm² (EU), +200mm, -300mm or Customized
Weight	27 kg
Connector	MC4 Compatible

Temperature & Maximum Ratings

Temperature Coefficient of Voc	-0.22%/°C
Temperature Coefficient of Isc	+0.05%/°C
Temperature Coefficient of Pmax	-0.26%/°C
Nominal Operating Cell Temperature (NOCT)	43±2°C
Operating Temperature	-40°C ~ +85°C
Maximum System Voltage	1500V DC
Maximum Series Fuse Rating	25A

Packing Information

Container	40' HQ
Pallets per Container	20
Pieces per Container	720

Product Features

Partial Shading Optimisation
PFAS-free
Micro-crack Resistance
More Aesthetic Values
Lower BOS
Better Temperature Coefficient
High Temperature Restriction
Higher Power
Suitable for ground power plants and distributed projects

Product Information: The W6-605~630I-E1 is a mono-facial BC-type module. The PDF states complete system and IEC product certification, including IEC 61215 and IEC 61730, together with ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018 management-system certifications.

Warranty: 15-Year Material & Workmanship warranty and 50-Year Excess Linear Power Output warranty as shown in the product brochure.

Electrical data are specified at Standard Test Conditions (STC): AM1.5, irradiance 1000W/m² and cell temperature 25°C. NOCT data are specified at irradiance 800W/m², AM1.5, ambient temperature 20°C and wind speed 1m/s.

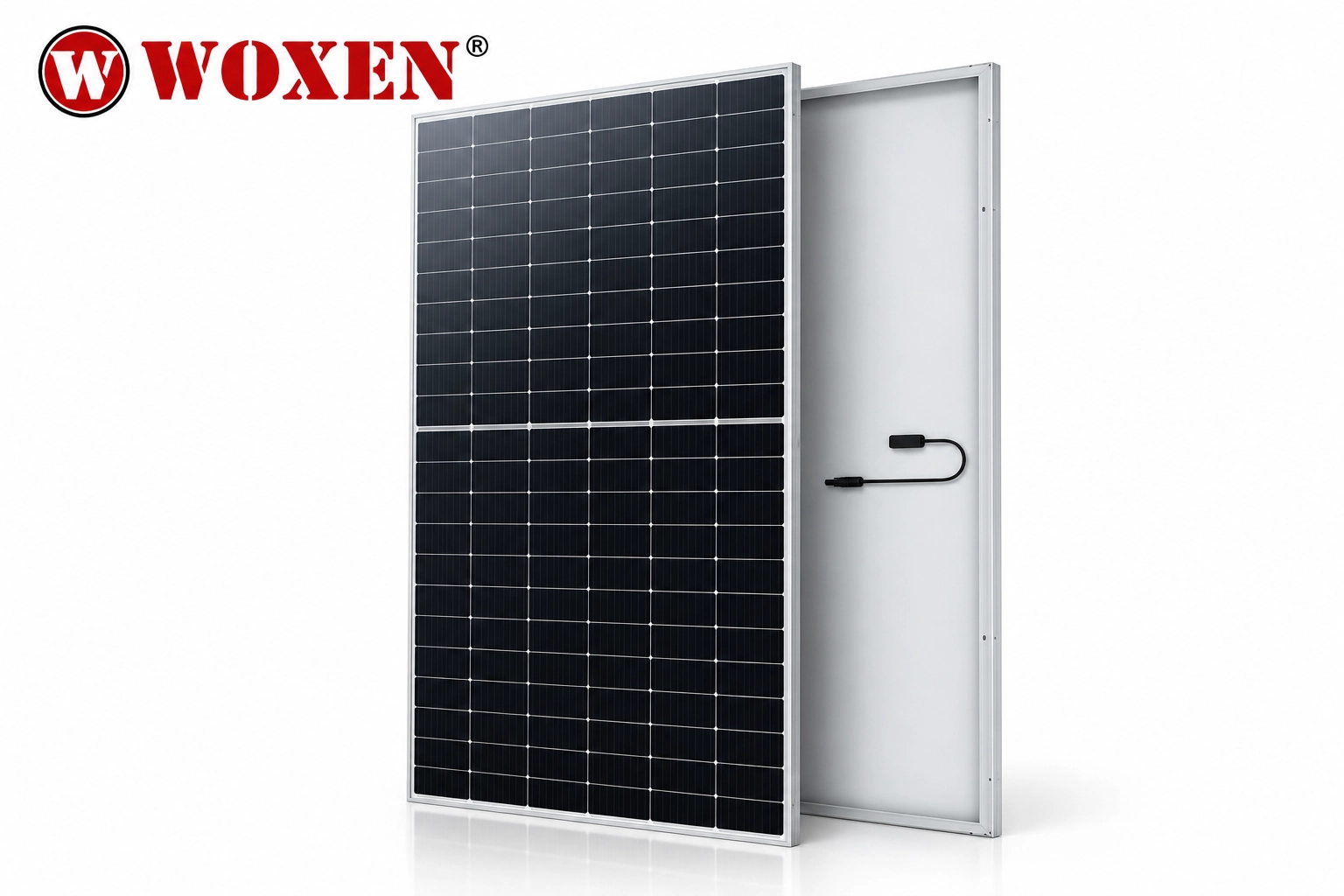

WOXEN W6-605~630I-E1 Mono-Facial Solar Module
