DownloadOutput Ratings
| Generating Set Model ( MAP-1880E ) | MAP-1710P | MAP-1880E |
|---|---|---|
| 380 V-220V, 50 Hz | 1710KVA 1368kW | 1880KVA 1504kW |
Ratings Definitions
Continuous Power- ModelThese ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours.
Standby Power-ModelThese ratings are applicable for supplying electrical power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings. The alternator on this model is peak continuous rated (as defined in ISO8528-3) at 27°C.
Technical Data
| Engine model | Perkins 4012-46TAG3A |
| Full load Diesel Consumption (L/H) | 62.0 |
| Lubrication capacity | 177L |
| Bore * Stroke (mm) | 160X 190 |
| Compression Ratio | 13.6:1 |
| Engine Displacement | 45.842 |
| Governor | Electronic |
| Inspiration | Turbocharged Aftercool |
| No .of Cylinders Inline/Vee | L12 |
| Type of Cylinder | Diesel |
| Cooling system | Water cooling |
| Frequency | 50 Hz |
| RPM | 1500 |
| Alternator Model | Stamford PI1734E |
| Power Factor (Lagging) | 0.8 |
| Connecting Type | 3phase,4wire |
| Voltage Regulation | ±0.1% |
| Insulation Class | H |
| Control panel | WOXEN wox-5 |
Dimensions and Weight
| Length: mm | Width: mm | Height: mm | Weight :Kg |
|---|---|---|---|

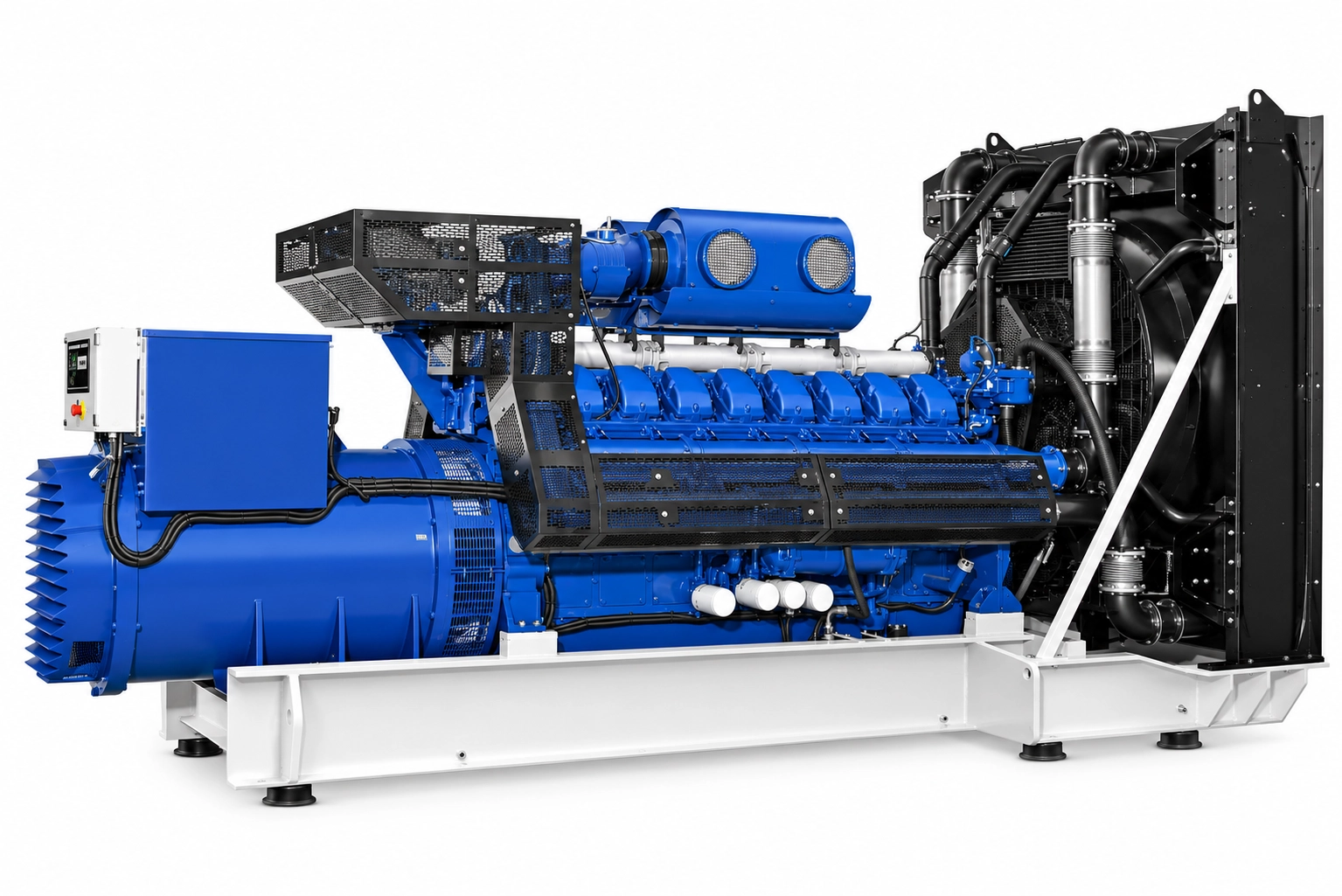

| Generating set pictured may include optional accessories. | |||
Note: Each WMS Generating set is also available with Woxen, Leroy Somer and Meccale Alternator and it is also supplied with a factory load test certificate and 1 year international warranty.
