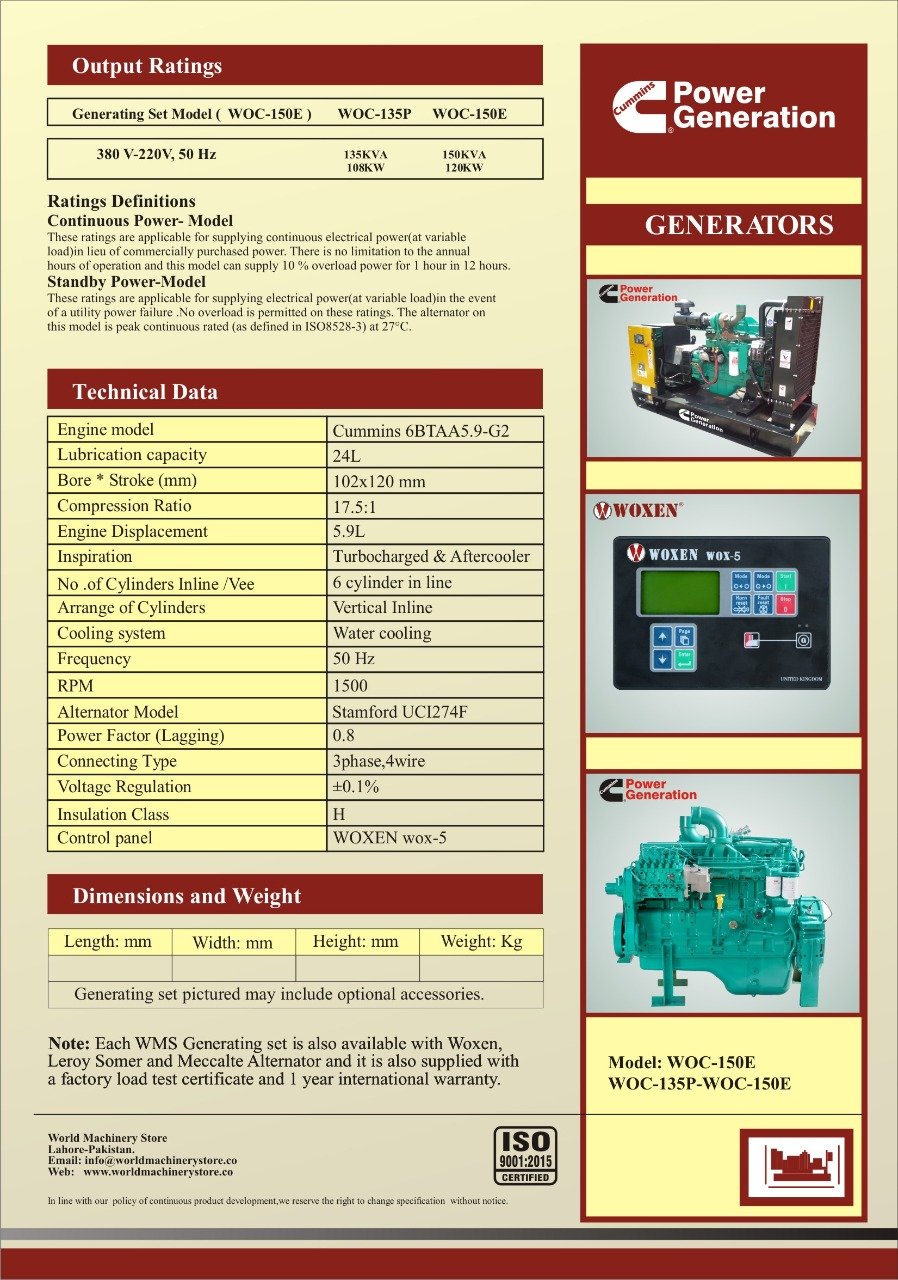

DownloadOutput Ratings
| Generating Set Model | WOC-135P | WOC-150E |
|---|---|---|
| 380V-220V, 50Hz | 135 KVA 108 KW | 150 KVA 120 KW |
Ratings Definitions
Continuous Power Model
These ratings are applicable for supplying continuous electrical power at variable load. There is no limitation to annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours.
Standby Power Model
These ratings are applicable for supplying electrical power at variable load in the event of a utility power failure. No overload is permitted on these ratings.
Technical Data

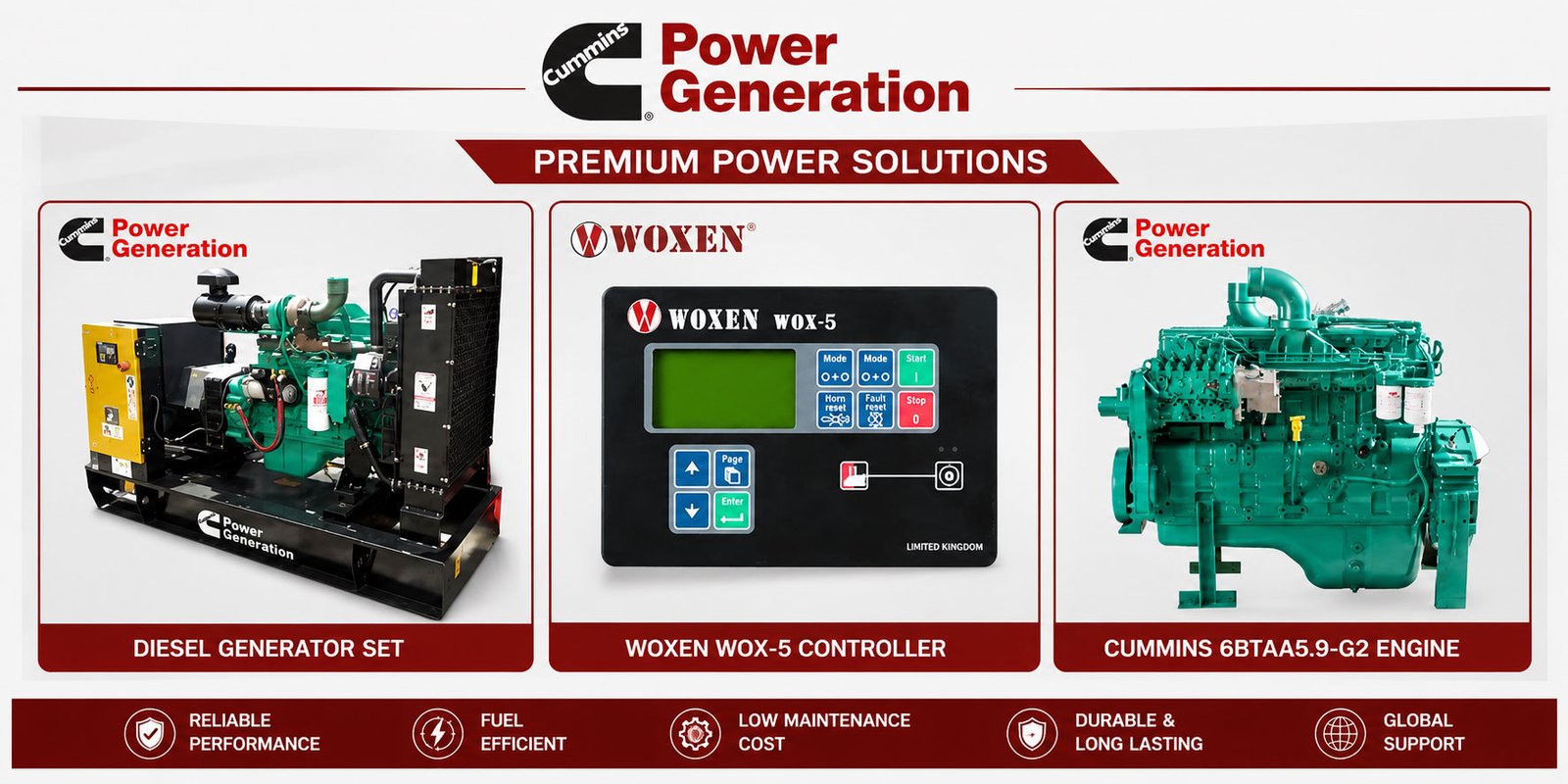

| Engine Model | Cummins 6BTAA5.9-G2 |
| Lubrication Capacity | 24L |
| Bore × Stroke | 102 × 120 mm |
| Compression Ratio | 17.5:1 |
| Engine Displacement | 5.9L |
| Aspiration | Turbocharged & Aftercooled |
| No. of Cylinders | 6 Cylinder Inline |
| Arrangement | Vertical Inline |
| Cooling System | Water Cooling |
| Frequency | 50Hz |
| RPM | 1500 |
| Alternator Model | Stamford UCI274F |
| Power Factor | 0.8 |
| Connecting Type | 3 Phase, 4 Wire |
| Voltage Regulation | ±0.1% |
| Insulation Class | H |
| Control Panel | WOXEN WOX-5 |
Dimensions & Weight
| Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|
| - | - | - | - |
