Cummins 250kVA & 275kVA Diesel Generator | WOC-250P & WOC-275E | World Machinery Store

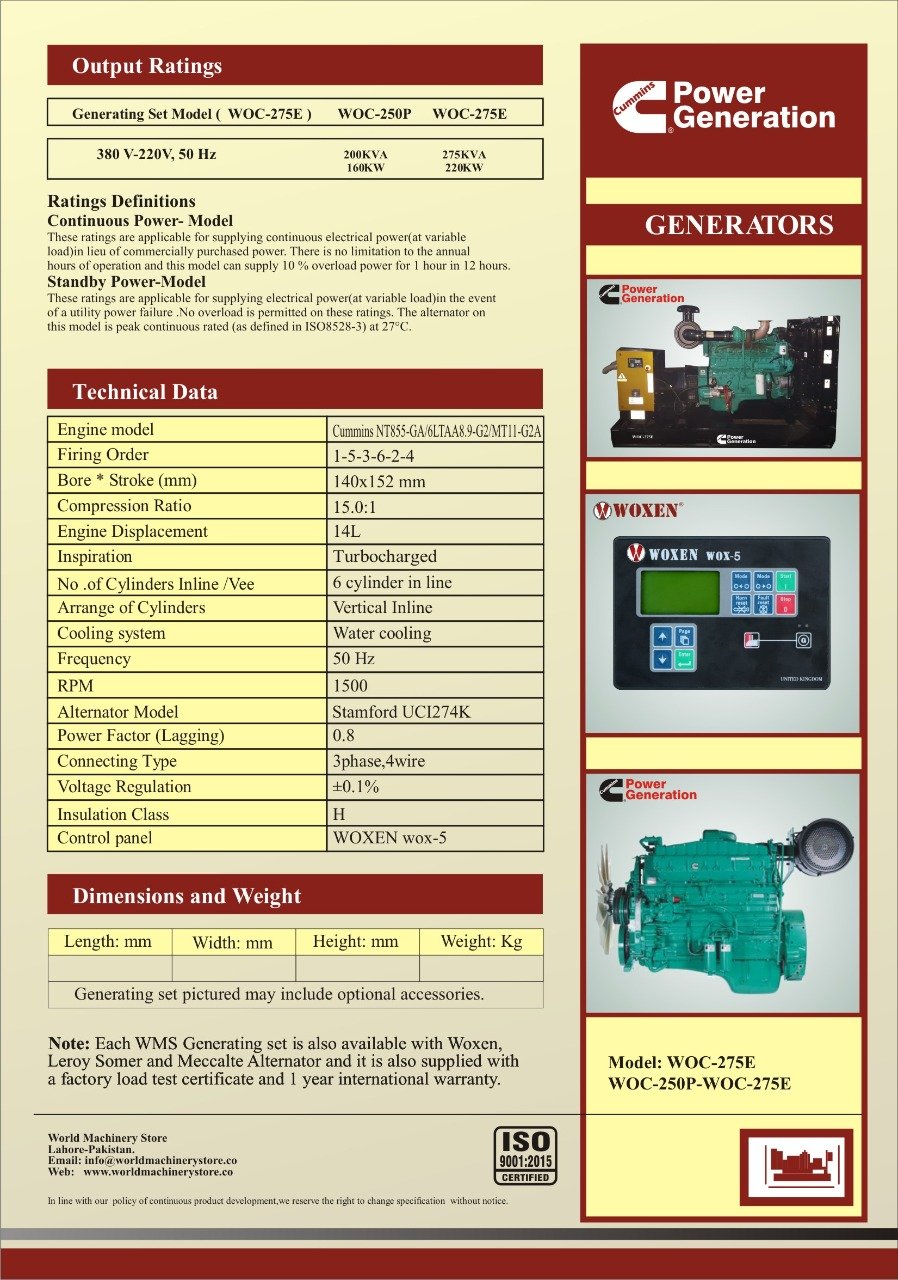

Download| Generating Set Model ( WOC-275E ) WOC-250P WOC-275E | ||
|---|---|---|
| 380 V-220V, 50 Hz | 200KVA 160KW | 275KVA 220KW |
Continuous Power- Model Standby Power-ModelRatings Definitions
These ratings are applicable for supplying continuous electrical power(at variable load)in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10 % overload power for 1 hour in 12 hours.
These ratings are applicable for supplying electrical power(at variable load)in the event of a utility power failure. No overload is permitted on these ratings. The alternator on this model is peak continuous rated (as defined in ISO8528-3) at 27°C.
Engine model Cummins NT855-GA / 6LTAA8.9-G2 / MT11-G2A Firing Order 1-5-3-6-2-4 Bore * Stroke (mm) 140x152 mm Compression Ratio 15.0:1 Engine Displacement 14L Inspiration Turbocharged No .of Cylinders Inline /Vee 6 cylinder in line Arrange of Cylinders Vertical Inline Cooling system Water cooling Frequency 50 Hz RPM 1500 Alternator Model Stamford UCI274K Power Factor (Lagging) 0.8 Connecting Type 3phase,4wire Voltage Regulation ±0.1% Insulation Class H Control panel WOXEN wox-5
Generating set pictured may include optional accessories.
Length: mm Width: mm Height: mm Weight: Kg
Note: Each WMS Generating set is also available with Woxen, Leroy Somer and MeccAlte Alternator and it is also supplied with a factory load test certificate and 1 year international warranty.
